RF Code Power Monitoring:
How It Works

Active RFID sensors, a dedicated reader infrastructure, and CenterScape data center monitoring and management software deliver the real-time power telemetry data you need for true operational efficiency.

Schedule a Demo
Rack Power Metrics
Live
Current
14.2 A
Voltage
208.5 V
Power
2.96 kW
Usage Trend (kW) Optimized
Telemetry Metrics

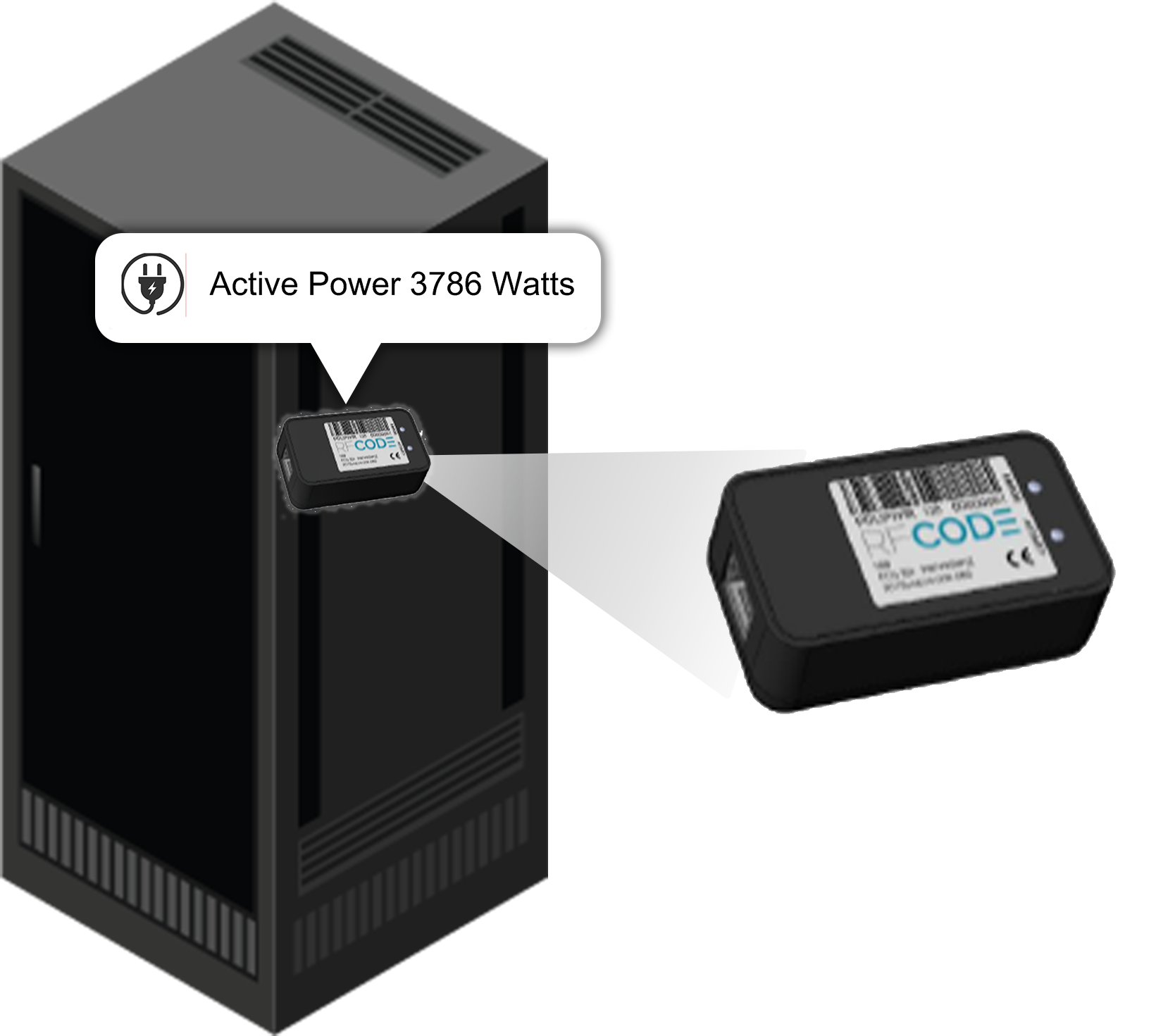

Rack PDU Power

RF Code power sensors are easy to deploy, with simple plug and play features that enable real-time collection of Rack PDUs (RPDU) power metrics.

Auto-configure maximum allowable power consumption per redundancy groups and overall rack load.
Continuous automated checks for circuit load violations on redundant configurations.
Continuous reporting and historical records of active power consumption for capacity planning.
Power & sustainability metrics
PUE
1.38
Target: <1.4
Total power
42.8
kW · all zones
Voltage Monitoring

Wire-Free AC Voltage Detection

RF Code’s AC voltage sensor wraps around the outside of an electrical cord and reports whether the cord has power or not, requiring zero downtime to install.

Diagnose whether offline equipment was shut down or unplugged.
Identify root causes of power delivery failures instantly.
Non-invasive wrap design allows installation on live lines.
Integration architecture
Connected systems
DCIMITSMBMSCFD & CoolingAnalytics
Protocols supported
SNMPMQTTModbusBACnetREST API
CenterScape
RF Code Software
Sensors & Devices
Asset TrackingTemp & HumidityFluid DetectionRack PDU PowerDoorAir PressureAC VoltageDry Contact
All data stored inside your own firewall. No cloud dependency. Secure by design.
Infrastructure

Dedicated Reader Infrastructure

Active RFID readers receive the telemetry data generated by RF Code sensors, processing thousands of data points securely inside your firewall.

Provides continuous visibility into data center power conditions.
Scales to monitor thousands of racks and power lines simultaneously.
Secure local deployment with no cloud dependency.

Complete Visibility & Efficiency

RF Code's platform eliminates expensive, time-consuming manual processes and avoids costly downtime.

Complete Tracking & Monitoring

Eliminate costly, error-prone, and inaccurate manual processes. Make informed decisions, decrease financial inefficiency, and strengthen the commercial viability of your data centers. Reduce operating expenses, maximize asset utilization, deliver ROI, and ensure regulatory compliance.

Reduce Costs, Ensure Efficiency

Critical asset tracking and environmental monitoring from RF Code provides continuous, real-time asset location data and environmental visibility across the entire data center, ensuring uptime, and delivering maximum operational efficiency and return on all data center investments.

Ready to see how RF Code works in your facility?

Schedule a live demo to discover how easy it is to deploy and use real-time asset tracking and environmental monitoring.
